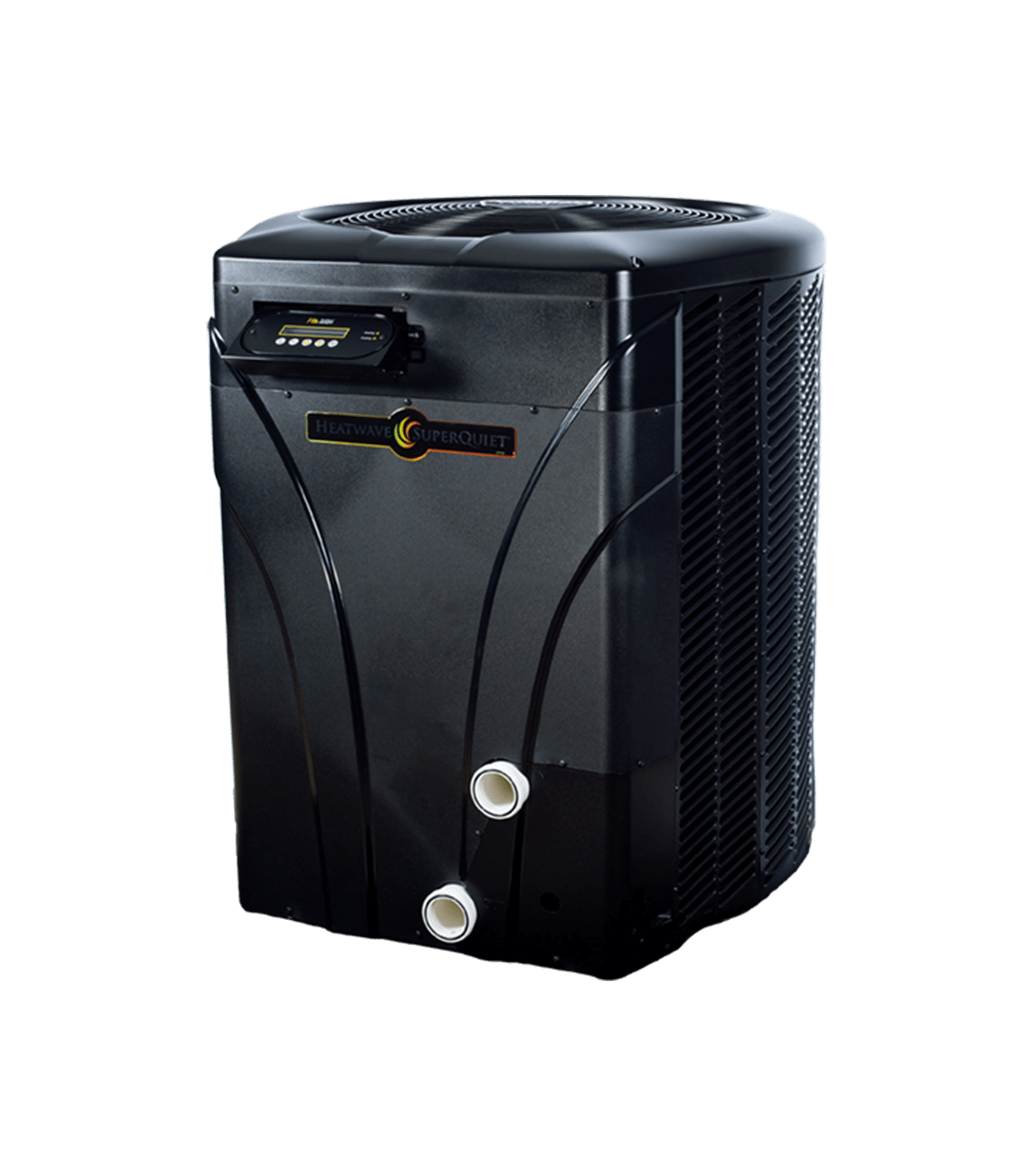

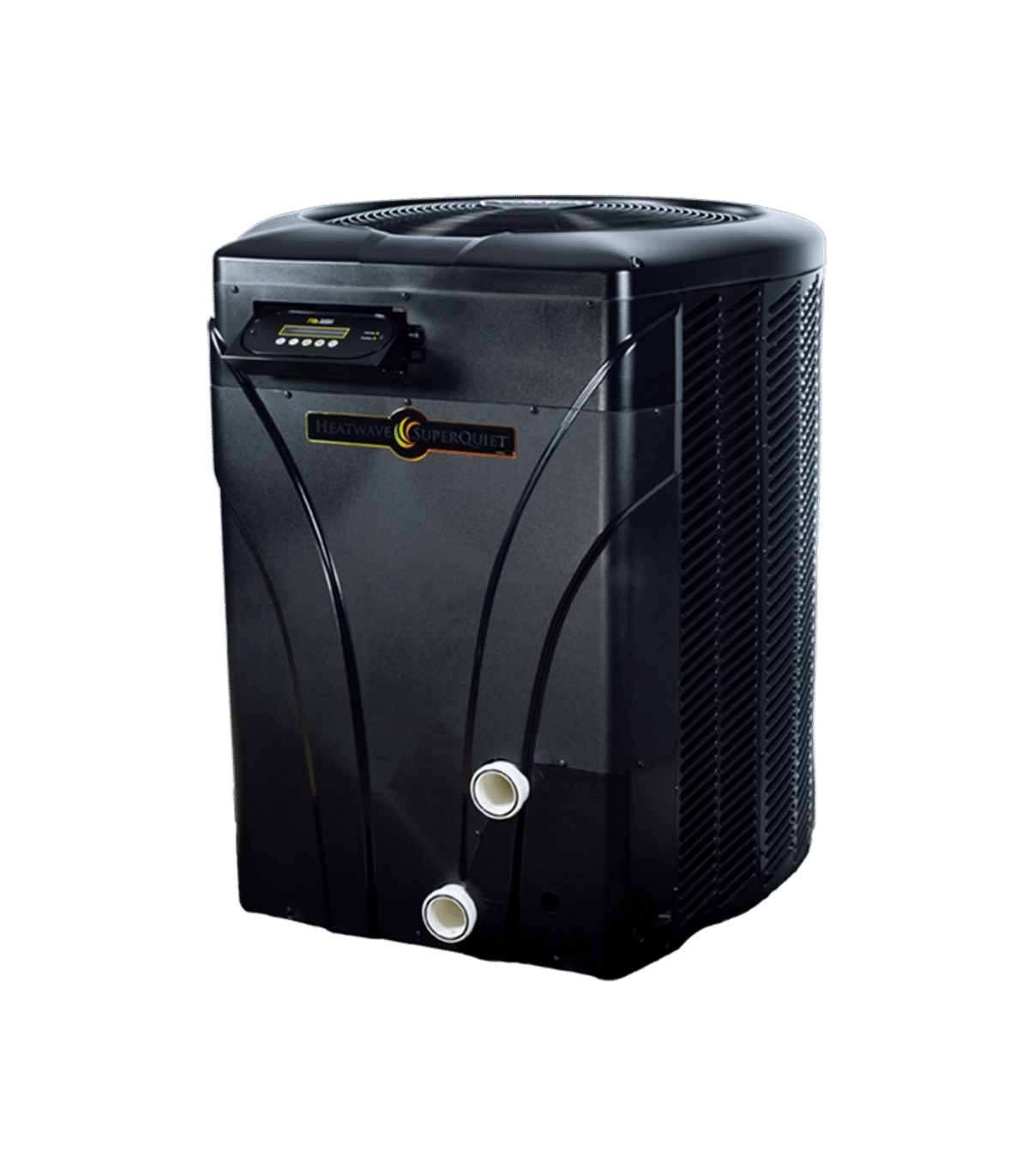

HeatWave SuperQuiet SQ166R

The HeatWave SuperQuiet® SQ166R comes equipped with all standard features. The Patented ThermoLink® Titanium Heat Exchanger at its core makes this unit a power-house that’s built to last. The SQ166R features IceBreaker® technology which allows you to heat and cool your pool. Plus, IceBreaker® units extend the swimming season longer than any other heat pump by continuing to operate in low temperatures.

  • Corrosion proof cabinet with AquaTop
  • Scroll Compressor – for quiet operation
  • Microprocessor Controls
  • Off-Set Plumbing

*PoolSync Antenna and PoolSync Relay Center sold separately

$6,262.00 $9,141.31

The HeatWave SuperQuiet® SQ166R comes equipped with all standard features. The Patented ThermoLink® Titanium Heat Exchanger at its core makes this unit a power-house that’s built to last. The SQ166R features IceBreaker® technology which allows you to heat and cool your pool. Plus, IceBreaker® units extend the swimming season longer than any other heat pump by continuing to operate in low temperatures.

  • Corrosion proof cabinet with AquaTop
  • Scroll Compressor – for quiet operation
  • Microprocessor Controls
  • Off-Set Plumbing

*PoolSync Antenna and PoolSync Relay Center sold separately

Features

The only heat pump that allows you to maximize the potential savings of a variable speed pump is an AquaCal®, which utilizes our patented ThermoLink® Heat Exchanger technology with its unique flow characteristics.

• Patented hydraulic design adds only 2 PSI at 45 gpm, increasing compatibility with two-speed & variable speed pumps
• Saves money when using a variable speed pump by reducing the RPM needed to achieve the same flow rate
• Save money in a single speed pump application by reducing the run time needed to achieve the same turnover rate of the pool

Corrosion Proof Cabinet

• Louvered side panels protect evaporator coil while ensuring efficient air flow
• Rust and fade proof
• Impact resistant
• Built-in drain pan provides condensate management

AquaTop

• Unique Air Flow Vectoring Top ensures optimal air flow for maximum efficiency
• World’s ONLY integrated top that protects internal components and prevents debris like leaves and other vegetation from getting inside the heat pump, rotting and becoming acidic
• Protection provided by the AquaTop allows for an extended 10 year warranty on the evaporator coil

Microprocessor Controlled with Digital Display

• Weather protected control with full text display provides easy-to-read menu options and unit status
• Ability to connect to most external controllers for heating and cooling mode

Additional Features

IceBreaker® Technology – Heat & Cool Models

• Extends swimming season longer than any other heat pump on the market
• Continue to heat at freezing temperatures to minimize heat loss
• Cool your pool to a refreshing temperature
• Set to heat, cool or autotemp

PoolSync® Ready

Adjust your heat mode and temperature setting right through your phone in the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required

Specifications

60 Hz SQ166R
BTUs
(water temp/ambient air/relative humidity)
80/80/80 126,000
80/80/63 120,000
80/50/63 82,000
Coefficient of Performance(water temp/ambient air/relative humidity)
80/80/80 5.6
80/80/63 5.3
80/50/63 4.0
Refrigerant R410A
Electrical
Heat or Heat & Cool H & C
kW Input 6.6
Voltage/Hz/Phase
A – 208-230/60/1
B – 200-230/60/3
E – 380-415/60/3
G – 460/60/3
A, B, E & G
Minimum/Maximum Fuse Size A – 60
B – 50
E – 30
G – 25
Minimum Circuit Ampacity A – 42.1
B – 33.3
E – 18.4
G – 16.2
Water Flow
*A Heater Bypass Kit is required when flow rates exceed the maximum
Minimum/Maximum (gpm) 30/70
Physical
Weight (lbs) 310
Length x Width x Height (in) 34″ x 34″ x 44″
Shipping
Weight (lbs) 350
Length x Width x Height (in) 37″ x 36″ x 51″
Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity
