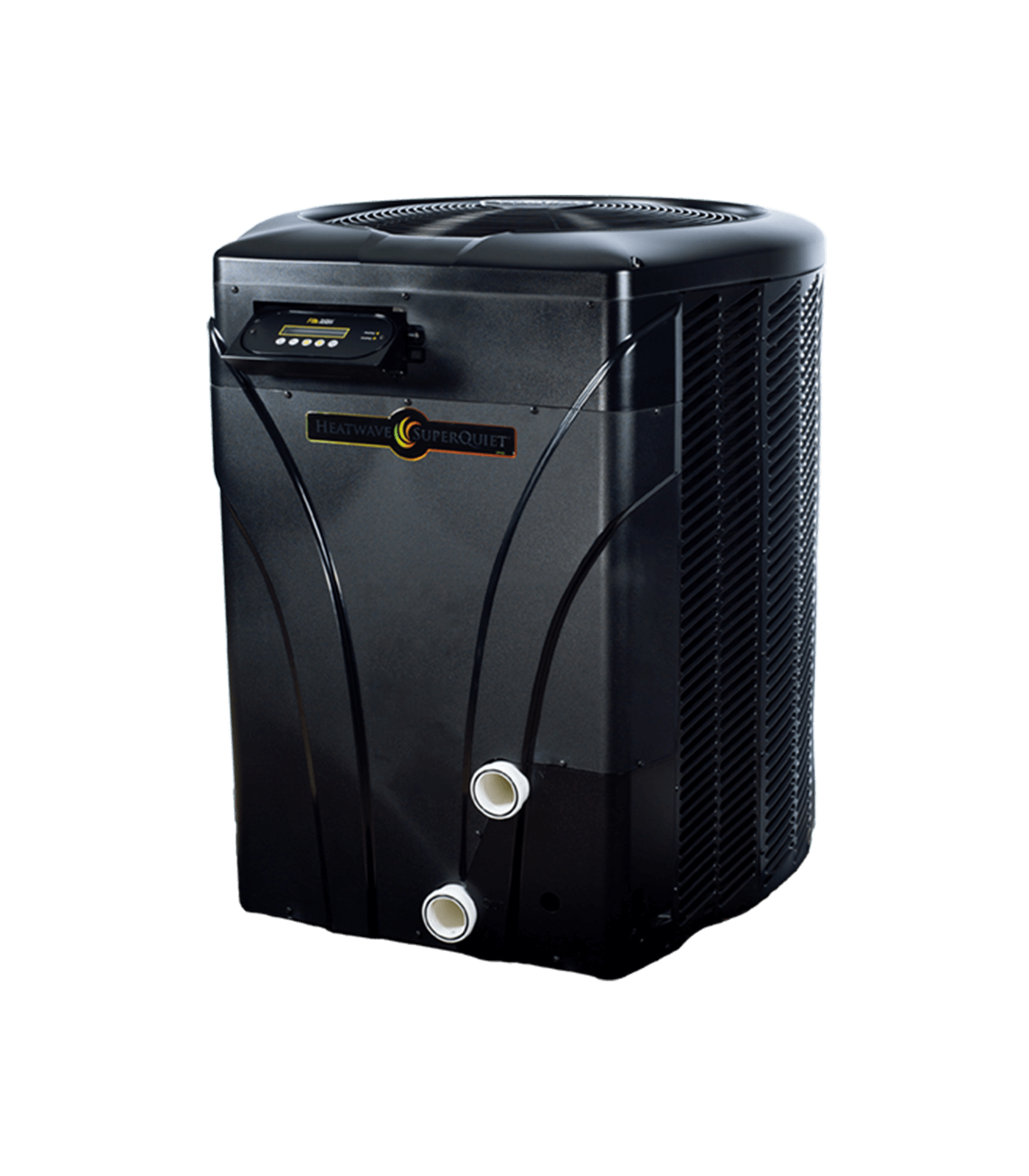

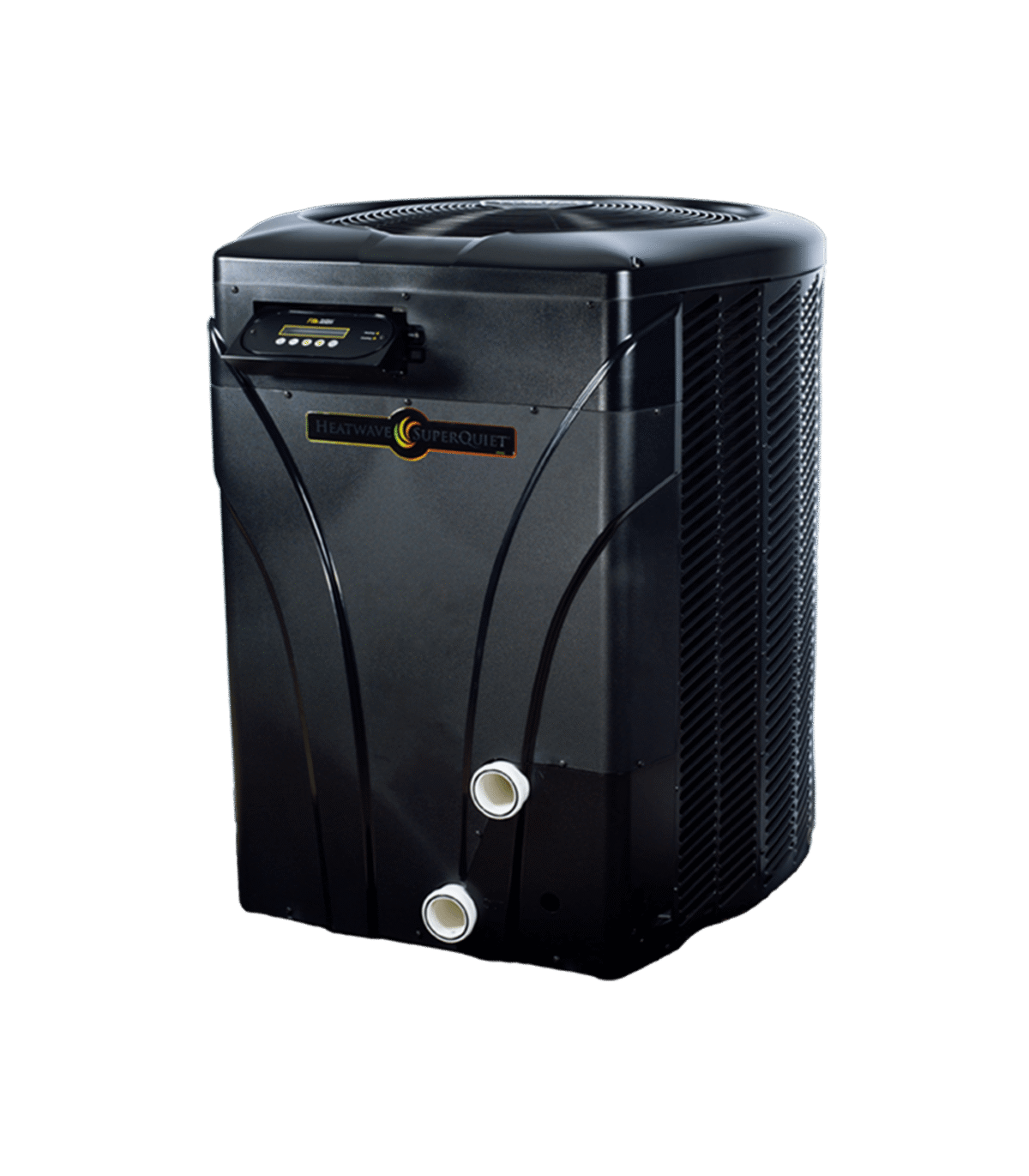

The HeatWave SuperQuiet® SQ120R comes equipped with all standard features. The Patented ThermoLink® Titanium Heat Exchanger at its core makes this unit a power-house that’s built to last. The SQ120R features IceBreaker® technology which allows you to heat and cool your pool. Plus, IceBreaker® units extend the swimming season longer than any other heat pump by continuing to operate in low temperatures.
- Corrosion proof cabinet with AquaTop
- Scroll Compressor – for quiet operation
- Microprocessor Controls
- Off-Set Plumbing
*PoolSync Antenna and PoolSync Relay Center sold separately
Features
The only heat pump that allows you to maximize the potential savings of a variable speed pump is an AquaCal®, which utilizes our patented ThermoLink® Heat Exchanger technology with its unique flow characteristics.
• Patented hydraulic design adds only 2 PSI at 45 gpm, increasing compatibility with two-speed & variable speed pumps
• Saves money when using a variable speed pump by reducing the RPM needed to achieve the same flow rate
• Save money in a single speed pump application by reducing the run time needed to achieve the same turnover rate of the pool
Corrosion Proof Cabinet
• Louvered side panels protect evaporator coil while ensuring efficient air flow
• Rust and fade proof
• Impact resistant
• Built-in drain pan provides condensate management
AquaTop
• Unique Air Flow Vectoring Top ensures optimal air flow for maximum efficiency
• World’s ONLY integrated top that protects internal components and prevents debris like leaves and other vegetation from getting inside the heat pump, rotting and becoming acidic
• Protection provided by the AquaTop allows for an extended 10 year warranty on the evaporator coil
Microprocessor Controlled with Digital Display
• Weather protected control with full text display provides easy-to-read menu options and unit status
• Ability to connect to most external controllers for heating and cooling mode
Additional Features
IceBreaker® Technology – Heat & Cool Models
• Extends swimming season longer than any other heat pump on the market
• Continue to heat at freezing temperatures to minimize heat loss
• Cool your pool to a refreshing temperature
• Set to heat, cool or autotemp
PoolSync® Ready
Adjust your heat mode and temperature setting right through your phone in the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required
Specifications
Minimum/Maximum (gpm)30/70
| 60 Hz |
SQ120R |
| 80/80/80 |
110,000 |
| 80/80/63 |
103,000 |
| 80/50/63 |
72,000 |
| 80/80/80 |
5.5 |
| 80/80/63 |
5.3 |
| 80/50/63 |
4.0 |
| Heat or Heat & Cool |
H & C |
| kW Input |
5.9 |
Voltage/Hz/Phase
A – 208-230/60/1
B – 200-230/60/3
E – 380-415/60/3
G – 460/60/3 |
A & B |
| Minimum/Maximum Fuse Size |
A – 60
B – 50 |
| Minimum Circuit Ampacity |
A – 38.5
B – 31.0 |
| Weight (lbs) |
273 |
| Length x Width x Height (in) |
34″ x 34″ x 44″ |
| Weight (lbs) |
313 |
| Length x Width x Height (in) |
37″ x 36″ x 51″ |
| Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity |
|
